Trayloaders

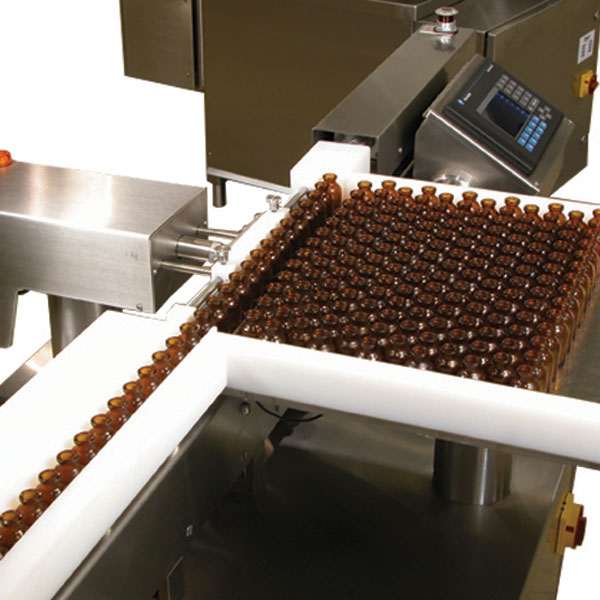

The TL range of trayloaders is designed for medium to high output aseptic and non aseptic applications. These trayloaders are simple to operate with quick changeover between vial sizes for minimal downtime. The layout of the work area and machine frame is designed to ensure no interruption of vertical airflow and ease of cleaning.
PLC control ensures that stepper motor speed and actuator movement is specific to each vial type and size. Changeover is quick and tool-free, taking less than 2 minutes. The TL series will handle plastic and glass vials up to 500ml with speeds of up to 400 vials per minute.
Click on the model below for more information
TL-100
Features
- Single trayloader
- Controlled by a Programmable Logic Controller (PLC) and will handle plastic and glass vials
- Designed to handle trays up to 610 mm (24″) wide (open end) and up to 610 mm (24″) deep
- Tray materials can be metal, cardboard, corrugated plastic, or rigid plastic
- No format/change parts required
- Menu-driven, PLC-assisted changeover
- Automatic nesting
- Optional automatic containment ring lowering system for freeze drying applications
- Optional camera inspection to ensure same cap color/format and vial configuration
- Consistency in trayloading, always the same number of vials per tray
- Non-stop loading, even when replacing a full tray
- Dimensions
208x112x95cm vial running surface 85-95cm - Purpose
Designed to collect vials for your application and your tray format - Vial Range
2-500ml - Output
Up to 200 vials per minute (depending on vial diameter and tray size) - Changeover
2 minutes (tool-less)


Get in touch today
Tel: +44 (0) 1962 841092 | bps@biopharma.co.uk

TL-200
Features
- Dual trayloader
- Controlled by a Programmable Logic Controller (PLC) and will handle plastic and glass vials
- Designed to handle trays up to 610 mm (24″) wide (open end) and up to 610 mm (24″) deep
- Tray materials can be metal, cardboard, corrugated plastic, or rigid plastic
- No format/change parts required
- Menu-driven, PLC-assisted changeover
- Automatic nesting
- Optional automatic containment ring lowering system for freeze drying applications
- Optional camera inspection to ensure same cap color/format and vial configuration
- Consistency in trayloading, always the same number of vials per tray
- Non-stop loading, even when replacing a full tray
- Dimensions
297.5x112x95cm vial running surface 85-95cm - Purpose
Designed to collect vials for your application and your tray format - Vial Range
2-500ml - Output
Up to 400 vials per minute (depending on vial diameter and tray size) - Changeover
2 minutes (tool-less)
HSTL-200
Features
- Dual trayloader
- Controlled by a Programmable Logic Controller (PLC) and will handle plastic and glass vials
- Designed to handle trays up to 610 mm (24″) wide (open end) and up to 610 mm (24″) deep
- Tray materials can be metal, cardboard, corrugated plastic, or rigid plastic
- No format/change parts required
- Menu-driven, PLC-assisted changeover
- Automatic nesting
- Optional automatic containment ring lowering system for freeze drying applications
- Optional camera inspection to ensure same cap color/format and vial configuration
- Consistency in trayloading, always the same number of vials per tray
- Non-stop loading, even when replacing a full tray
- Dimensions
297.5x97x100cm vial running surface 85-95cm - Purpose
Designed to collect vials for your application and your tray format - Vial Range
2-500ml - Output
Up to 500 vials per minute (depending on vial diameter and tray size) - Changeover
2 minutes (tool-less)
